Yet another weather station!
Author: admin | Category: Weather Station | Leave a Comment
Material Required
Raspberry Pi Zero 2 W with Pre-soldered Headers
264×176, 2.7inch E-Ink display HAT for Raspberry Pi
MicroSD Card – 32 GB – Class 10 – BLANK
Raspberry Pi 12.5W Power Supply, US, White

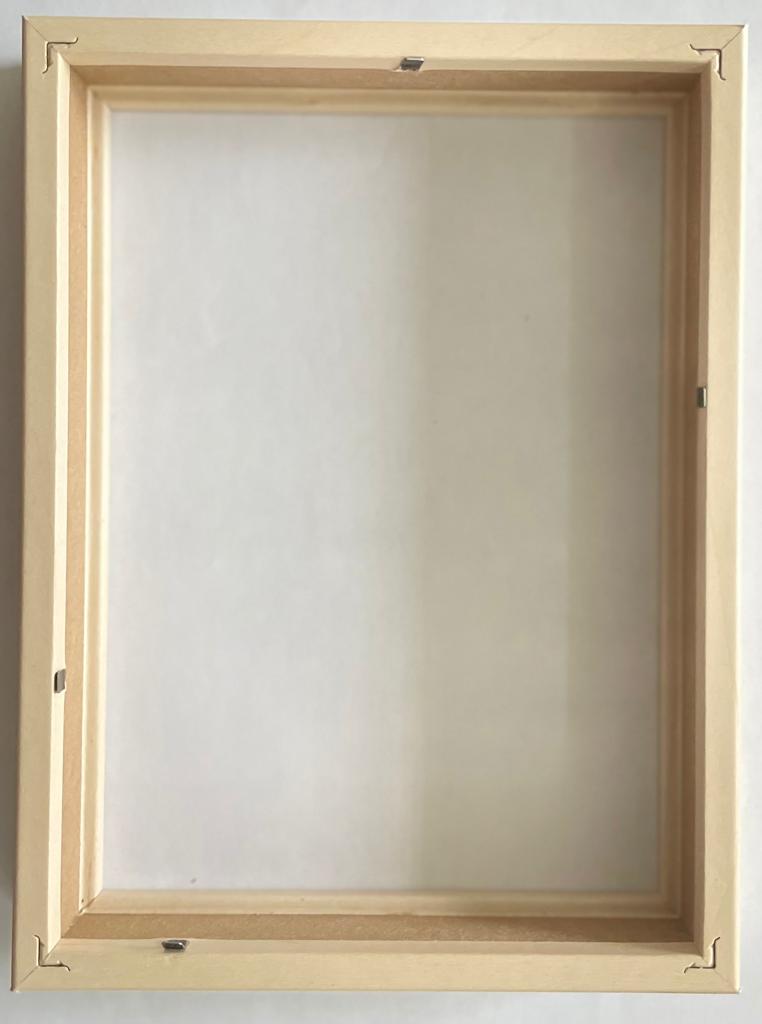

HOVSTA – Frame, birch effect, 13×18 cm
The code used in making this weather station is the modified version of the below project.
Weather Station with ePaper and Raspberry Pi, in that project a color 264×176, 2.7inch E-Ink display HAT for Raspberry Pi, three-color is used. I am using the BW model of the E-Ink display and have modified the code to use black and white color.
Preparing the Hardware and Software
Install the Raspberry Pi OS on the SD card.

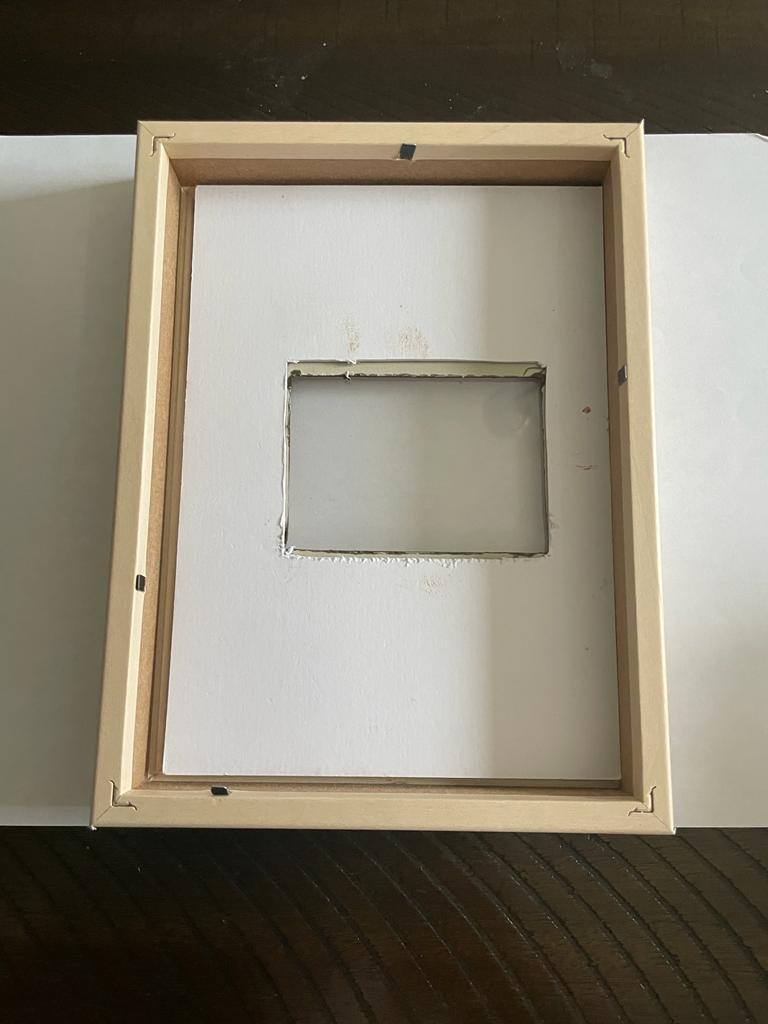

Layer 1: make the mat board, do some artwork on the white color mat, and cut the frame to fit the display.
The below design was done by Fathima Farha. Thank you.

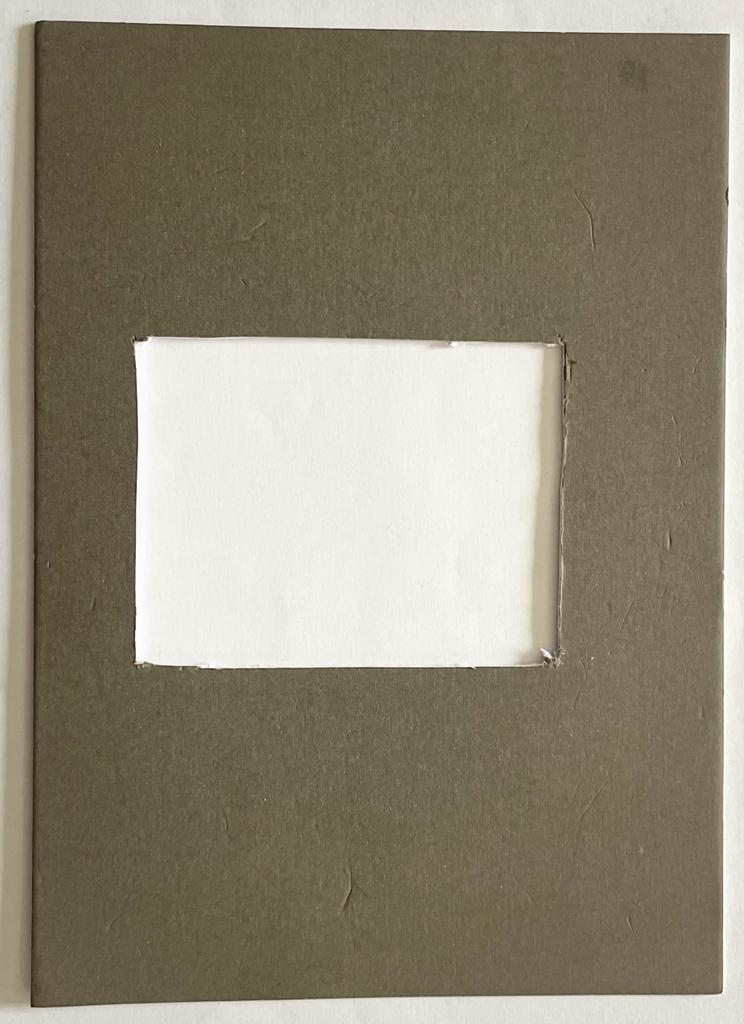

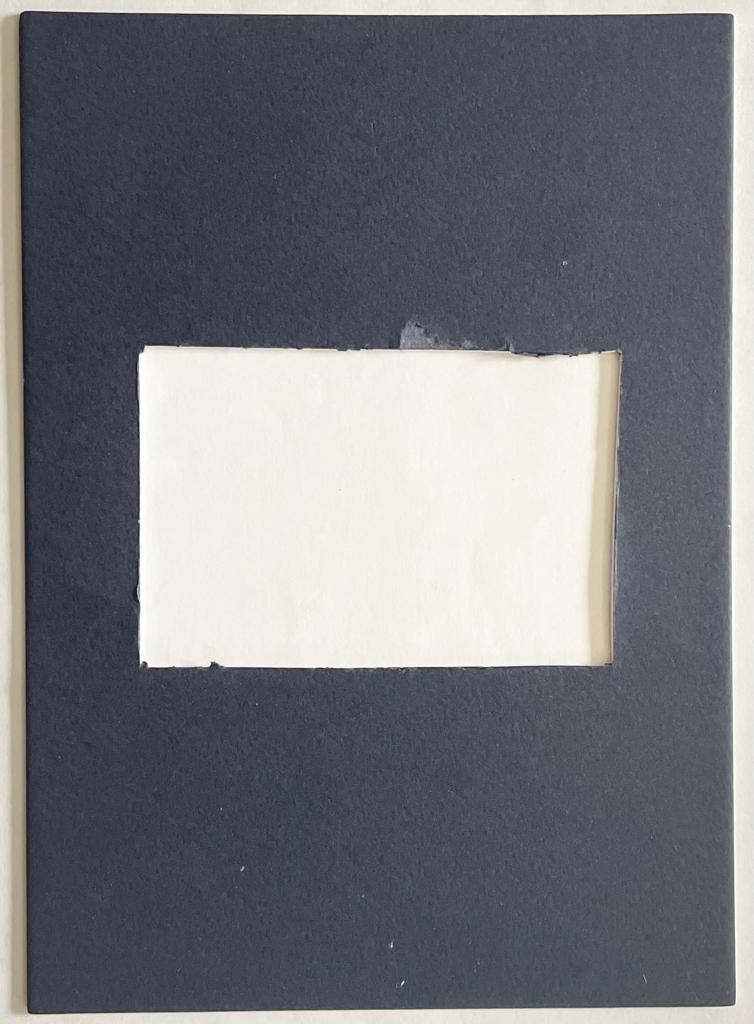

Layer 2: Cut the frame to fit the display.

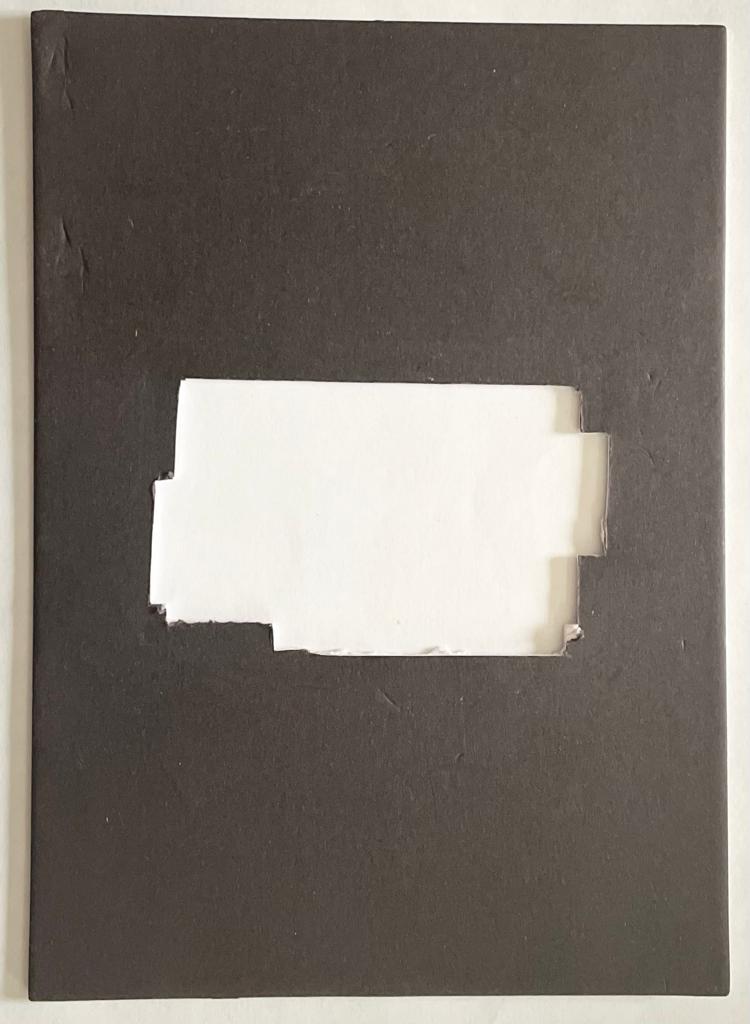

Layer 3 – Cut the frame to fit the display.
Layer 4: Cut the frame to fit the display.

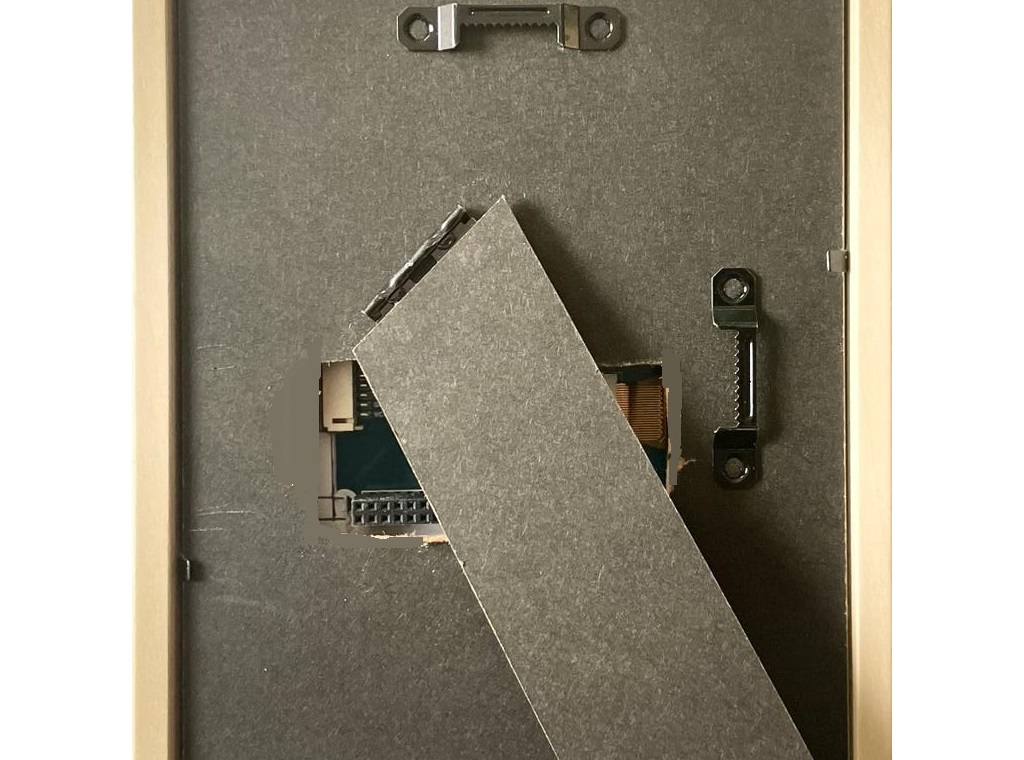

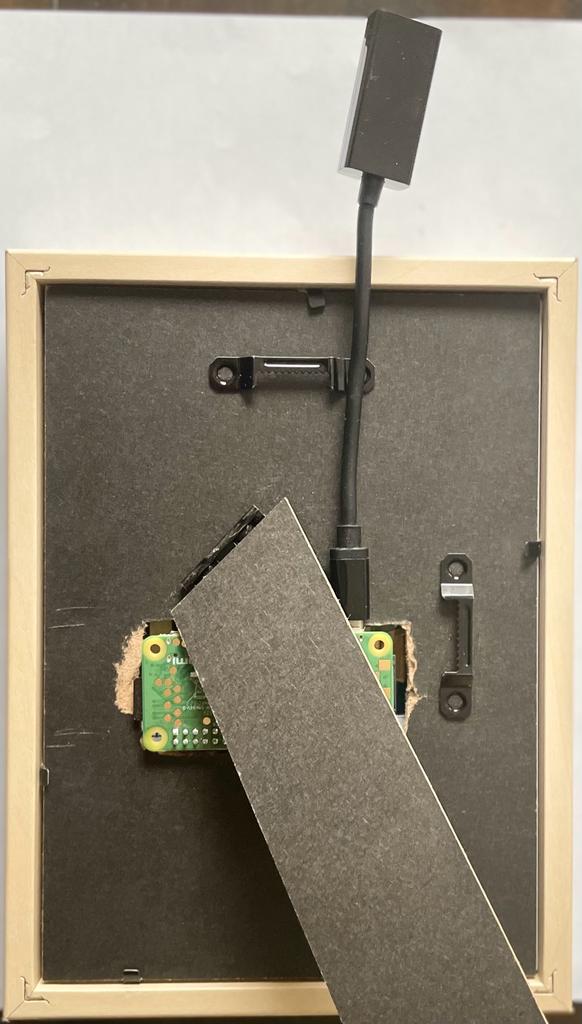

Layer 5: On The back panel of the frame, make a square so that the raspberry pi zero 2 fits accordingly on the display

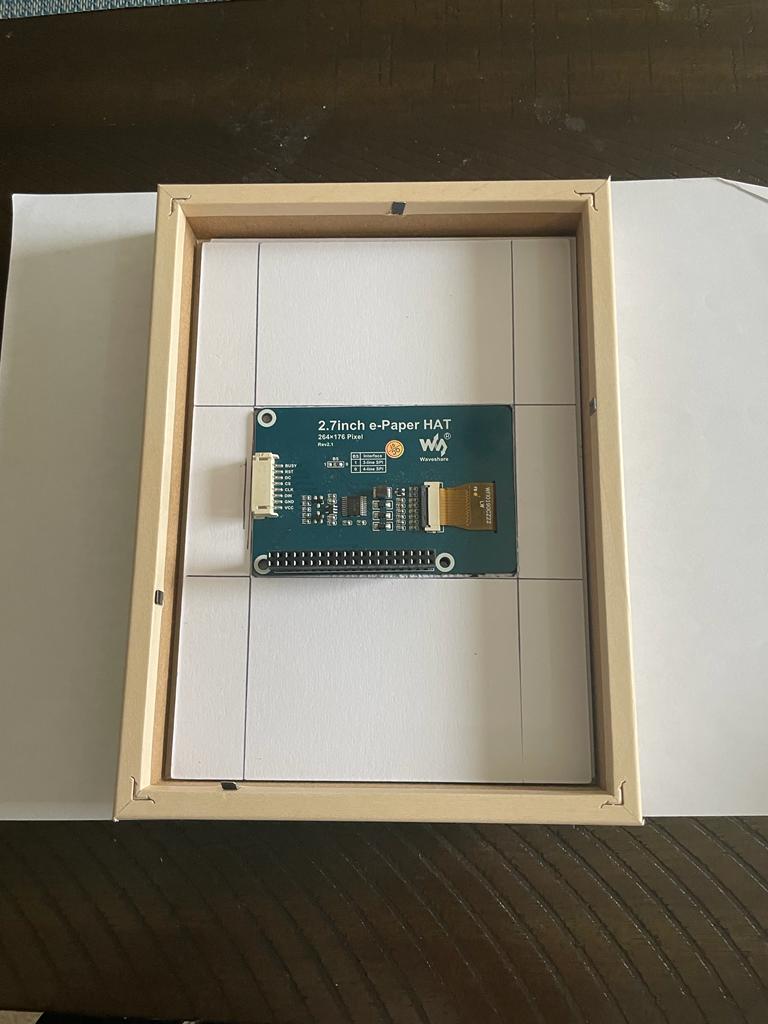

Now stack the frame as given in the below images

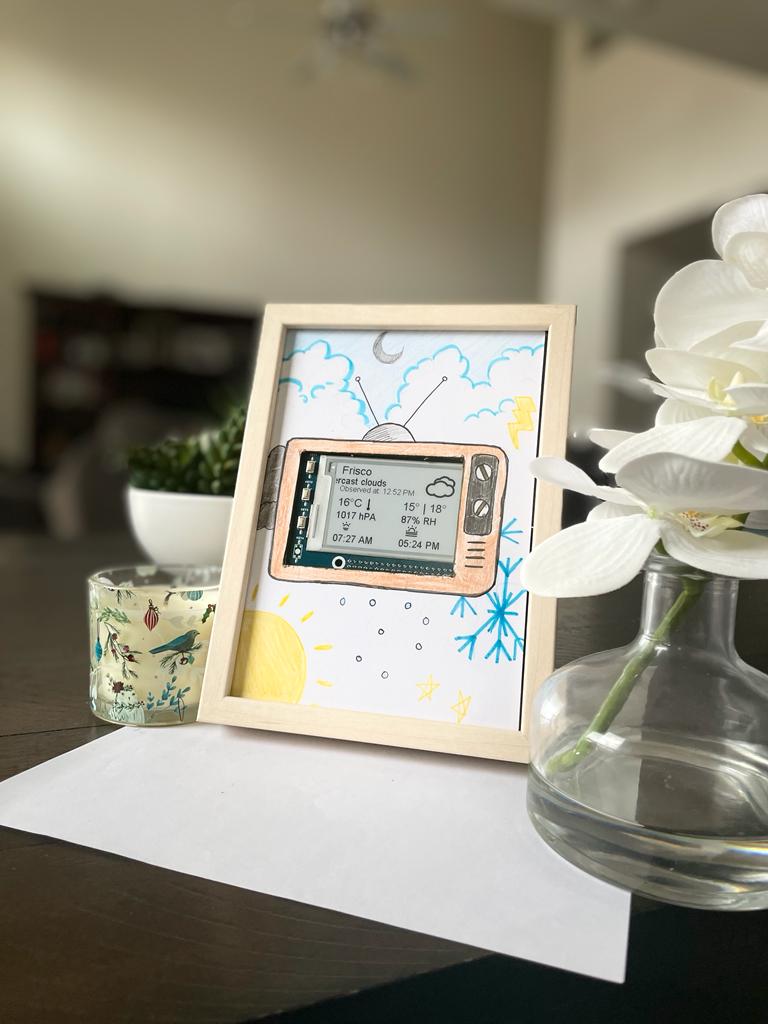

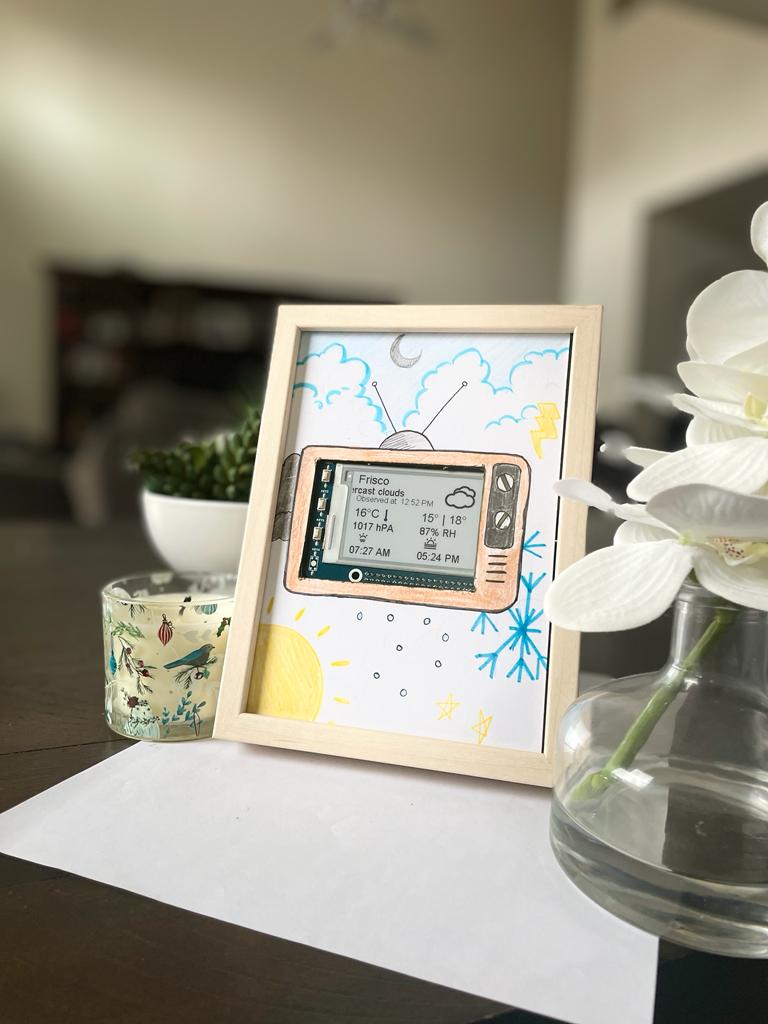

Power up the Pi – the once the program is started, the weather station looks like below.
